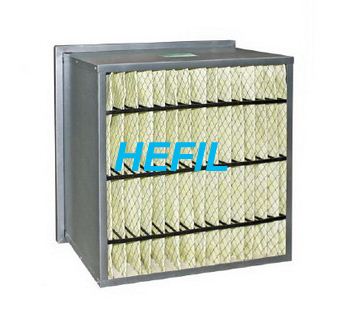

    HPM Medium-efficiency Panel Filter

    =HPM= Medium-efficiency Panel Filter

    ===Features===
    ◆Trapping 65~95% of ≥1.0μm particles
    ◆Using special low-resistance and high-throughput non-woven fabrics
    as the filter material, with a high dust containing capacity
    ◆Frame can be made of galvanized steel sheet, stainless steel sheet,
    aluminum alloy or ABS plastic


    ===Application===
    ◆Suitable for the electronics, bio-pharmaceutical, machinery,
    instrumentation, petrochemical and light industry as general air
    purification systems.


    ===Common specifications===



Model

Dimensions

No. of Folds

Media Area (m2)

Initial Pressure Drop (Pa) @ Air Flow (m3/h)

W×H×D (mm)

F5(40~45%)

F6(60~65%)

F7(80~85%)

F8(90~95%)

HPM-12×24×2

290×595×46

9

0.46

40@250

60@250

70@250

100@250

HPM-24×24×2

595×595×46

17

0.9

40@500

60@500

70@500

100@500

HPM-12×24×3

290×595×69

9

0.7

40@400

60@400

70@400

100@400

HPM-24×24×3

595×595×69

17

1.4

40@790

60@790

70@790

100@790

HPM-12×24×4

290×595×90

9

0.9

40@500

60@500

70@500

100@500

HPM-24×24×4

595×595×90

17

1.8

40@1000

60@1000

70@1000

100@1000

HPM-12×24×6

290×595×150

9

1.5

40@850

60@850

70@850

100@850

HPM-24×24×6

595×595×150

17

3.0

40@1700

60@1700

70@1700

100@1700

HPM-12×24×12

290×595×292

9

3.0

40@1700

60@1700

70@1700

100@1700

HPM-24×24×12

595×595×292

17

6.0

40@3400

60@3400

70@3400

100@3400

HEFIL makes various other models of HPM filter not listed the above table. Please consult with us if you need.
