Products

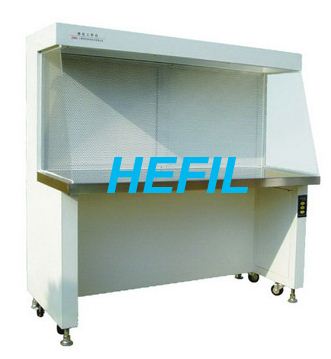

    HCB Clean Bench

    ===Features===
    ◆Providing for working environment of Class 100 cleanliness
    ◆Two type of device: cross laminar flow & down laminar flow
    ◆Adopting ultra-fine fiber glass paper with low resistance and large
    air volume, the built-in mini pleat filter occupies small space
    ◆To ensure that the air velocity of working area has always been the
    ideal state, the fan delivery can be regulated steplessly by electronic
    touch-control panel
    ◆Fitted up with stainless steel working surface and Plexiglas guard
    board. The ultraviolet light can be equipped with electric remote
    control interface


    ===Application===
    ◆Clean bench is used for maintaining limited workspace as clean
    environment using gem-free  and dust-free device. Dust-free and
    gem-free air of less than Class 100 are collected and sent at speed of
    up to 0.5m/sec, workspace remains clean area with less than Class 100.





    ===Common specifications===



Model

Normal

Medical

HCB-1H

HCB-2H

HCB-1V

HCB-2V

Cleanliness Level

FS209E Class 100 / ISO Class 5

Air Stream Direction

Cross Laminar Flow

Down Laminar Flow

Mean Stream Velocity

0.30.5m/s (Adjustable)

Noise

≤62dB(A)

Power Supply

AC, 1Ф-220V/50Hz

Power Dissipation

0.4kW

0.8kW

0.4kW

0.8kW

Weight

160kg

260kg

150kg

350kg

External Dimensions

(W×D×H)

900×700×1450(mm)

1760×700×1450 (mm)

1035×700×1600 (mm)

1665×700×1600 (mm)

Working Area

(W×D×H)

820×480×600(mm)

1680×480×600 (mm)

870×680×525 (mm)

1510×680×525 (mm)

HEPA Outfit

820×600×50, 1pcs

820×600×50, 2pcs

820×600×50, 1pcs

820×600×50, 1pcs

600×600×50, 1pcs

Fluorescent/Ultraviolet

20W/20W

40W/30W

20W / 20W

30W×2 / 30W×2

Luminosity

≥300Lx

Seating Capacity

1-man, 1-side

2-man, 1-side

1-man, 2-side

2-man, 2-side

HEFIL makes various other models of HCB clean bench not listed the above table. Please consult with us if you need.
