Products

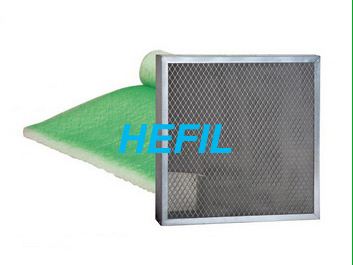

    HGF Glass Fiber Paint Separator

    ===Features===
    ◆Using long glass fiber to make into a conformation of the increase in
    density by non-woven process
    ◆The glass fibers are strong, resilient, and with high efficiency, low
    resistance characteristic to catch paint mist
    ◆The structure of gradually increase the density of fibers can block
    particles of various sizes at the levels of different density. It has
    a large capacity of dust quantity
    ◆Under higher air velocity the separator will still maintain the
    original shape. It has advantages of low cost and long service life
    ◆With good temperature tolerance, operating temperature can reach
    170oC
    ◆With good wet fastness, operating humidity can be100%RH
    ◆Coloring differentiates the direction of catching dust, the white as
    a inlet side and the green as a outlet side
    ◆Can be with galvanized steel or aluminum alloy frame and also
    expanded metal on the exhaust side, to effectively prevent deformation
    of the separator under high-speed airflow


    ===Application===
    ◆Suitable as pre-filter of fresh air in general air conditioning system,
    as well as exhaust gas filter in paint mist exhaust system on the floor
    of dry spray booth

    ===Common specifications===



Model

HGF-60

HGF-100

Common Size

60mmT×1m×20m 60mmT×2m×20m

100mmT×1m×20m 100mmT×2m×20m

Average Trapping Efficiency

92~97%

97~99%

Initial Pressure Drop

10Pa

15Pa

Final Pressure Drop

130Pa

150Pa

Heat Resistance

170oC

HEFIL makes various other models of HGF separator not listed the above table. Please consult with us if you need.
