Products

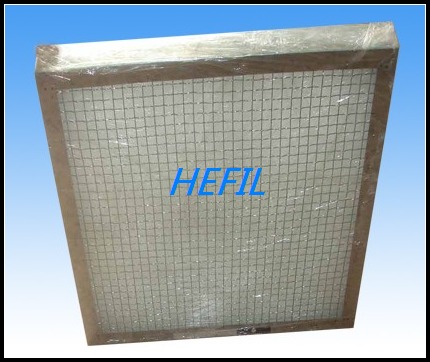

    High-temperature high efficiency filter - Wo beneficial professional

    A brief introduction:

    Shanghai Wo Yi purification of high-temperature filters use a baffle design, corrugated partitions can accurately maintain the folds of space, in the minimum drag, maximize the use of the filter, the filter filter on both sides of 180-fold turn-shaped pleated pleated layer media bending prescribe indentation, to the division end of the wedge box folds, wedge cassette pleated layer can prevent filter damage.

    A detailed description of the high-temperature air filters

    High temperature air filters use a baffle design, corrugated partitions can accurately maintain the folds of space, in the minimum drag, maximize the use of the filter, the filter filter on both sides of 180 fold turn the fold-shaped fold, filter prescribe indentation bending the end of the open division as a wedge box folds, wedge cassette pleated layer can prevent filter damage.

    Material:

    A production type: no partition of high-temperature high efficiency filter, partition high-temperature high efficiency filter, high temperature modular high efficiency filter, high-temperature super-efficient filter;

    2 filter: the filter of glass fiber of H13-H14, U15-U17 HV glass fiber filter paper;

    Three box material: 250 ℃ optional aluminum box, aluminum folding frame, galvanized steel frame, stainless steel box; galvanized frame or stainless steel box must be selected more than 250 ℃;

    Sealing strip: silica gel plate (250-280 ° C), PTFE tape (350-400 ° C);

    5 filter size: Based on actual customer requirements to develop.

    ===Common specifications===
