Products

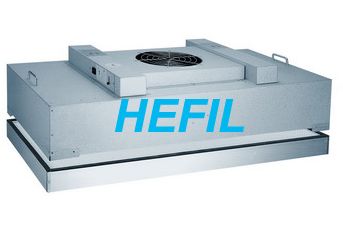

    Fan Filter Unit (FFU)

    ===Features===
    ◆Outer casing is made of galvalume, stainless steel, electrolytic sheet,
    galvanized sheet iron or aluminum alloy sheet
    ◆Structure of compact, easy to install
    ◆Low power consumption, low running costs
    ◆With a high-capacity fan, in long-term use under high static pressure,
    but can also maintain a low noise
    ◆Wide range of applications, fit a variety of clean room from FS209D
    Class 10,000 ~ Class 1
    ===Application===
    ◆FFU system is convenient and flexible, can be applied to any structure
    and the level of the clean room. It can also be used in other cleaning
    devices, such as: portable clean room, clean bench, clean corridors and
    so on.



    ===Common specifications===

Model

HFU-HA24

HFU-HA44

HFU-HA22

Module Size (mm)

1175×575×340

1175×1175×340

575×575×340

Face Velocity (m/s)

Low

High

Low

High

Low

High

0.35

0.55

0.35

0.55

0.35

0.55

Noise (dB(A))

≤46

≤52

≤48

≤54

≤46

≤52

Power Supply

AC, 1-Ф220V/50Hz

Power Dissipation (W)

100~120

200~245

75~90

Host Weight (kg)

25

45

15

HEPA Efficiency

≥99.9999.999%@0.3μm

HEPA Size (mm)

1170×570×80/70

1170×1170×80/70

570×570×80/70

HEPA Wight (kg)

9.5

17

5.2

External Static Pressure (Pa)

98

HEFIL makes various other models of FFU not listed the above table. Please consult with us if you need.
