Products

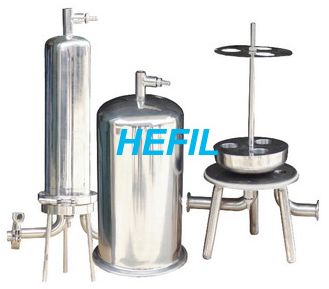

    Liquid Filter

    === Applicable range ===
    ◆ of HFL liquid filter housings, you can install various types of folded filter for liquid filtration to form a complete set of liquid filters. Reasonable design, compact structure, beautiful appearance, to install and easy to clean. Applicable to various industries such as food, medicine, chemical industry, electronics, environmental protection liquid purification filter
    ===Common specifications===

=== Technical features ===

Shell manufacturing materials

Stainless steel 304, 316, 316L

Filter interface type

222 (plug-in), 226 (snap-on)

Pipeline connection

Clamps

Provide external connectors

Flange

HG20593-1997; PN1.0~1.6MPa

Working pressure

0.3MPa, 0.8MPa

Operating Temperature

0 to 100 o C (or between the various types of liquid freezing point and boiling point between)

=== Specifications Type Dimensions ===

Rated filter capacity

(t/h)

Shell code

Filter configuration

Import and export to take over

Dimensions (mm)

Reference

Weight

(kg)

Number of cores

Length

d (mm)

Connection
Type

D

W

H

h1

h2

0.5

1

1.5

HFL-0110

1

10"

DN20

Clamps

Φ102

260

564

120

360

4.5

HFL-0120

20"

814

600

5.5

HFL-0130

30"

1064

840

6.5

1.5

3

4.5

HFL-0310

3

10"

DN25

Clamps
Or
Flange

Φ184

360

632

360

10

HFL-0320

20"

882

600

14

HFL-0330

30"

1132

840

18

2.5

5

7.5

HFL-0510

5

10"

DN40

Φ234

380

716

150

410

19

HFL-0520

20"

966

650

23

HFL-0530

30"

1216

890

27

8

12

16

HFL-0820

8-cell

20"

DN50

Φ304

450

966

670

35

HFL-0830

30"

1236

910

40

HFL-0840

40"

1486

1150

45

12

18

24

HFL-1220

12 core

20"

DN65

Flange

Φ354

500

1041

685

45

HFL-1230

30"

1291

925

50

HFL-1240

40"

1541

1165

55

17

25.5

34

HFL-1720

17 core

20"

DN80

Φ404

550

1118

200

695

61

HFL-1730

30"

1368

935

66

HFL-1740

40"

1618

1175

74

21

31

42

HFL-2120

21 core

20"

Φ454

600

1142

710

70

HFL-2130

30"

1392

950

76

HFL-2140

40"

1642

1190

82

30

45

60

HFL-3020

30 core

20"

DN100

Φ505

650

1183

720

91

HFL-3030

30"

1433

960

99

HFL-3040

40"

1683

1200

107

1.In case specifications, structural changes to the latest data provided by the Company of
2, the order of the Company to accept the non-sheet specifications of the filter products
